Orion Launch Abort System Stops in Philadelphia

by Ken Kremer

A full scale mock-up of the Orion Launch Abort System (LAS) is hitting the road for a cross country trek of several museums and science centers.  The public can see the LAS spacecraft hardware up close and personal and learn about the Orion crew vehicle and abort system.  I visited the LAS in Philadelphia, PA where it was on display at the Franklin Institute Science Museum during the weekend of Oct 16 & 17, 2010.

It is a rather startling and rare sight to behold the 45-ft. long rocket assembly mock up sitting pretty on a long flatbed tractor trailer outside the steps of the architecturally grand museum in the midst of the bustle of a major American city with cars driving by.  The spacecraft hardware was far too large to bring inside the museum.

The impressive rocket display and information panels were popular with kids and adults passing by. The outdoor display was accompanied by an exhibition booth inside the museum atrium which was manned by engineers from Orion’s prime contractor Lockheed Martin and sub contractor ATK to explain Orion spacecraft operations.

Orion is NASA’s next generation manned spacecraft and is designed to eventually replace the Space Shuttle. The shuttle will be retired sometime in 2011.  The first Orion orbital test flight – dubbed OFT-1 – is set for 2013.

The LAS is designed to immediately pull the Orion crew module away from the launch vehicle during an emergency on the pad or during the climb to orbit and save astronaut’s lives.

Known as the LAS pathfinder, the mock up is traveling the roadways from the U.S. Army’s White Sands Missile Range in New Mexico to NASA’s Kennedy Space Center (KSC) in Florida.  At KSC, it will undergo future pathfinding operations for investigation with the Orion crew exploration vehicle to prepare for the OFT-1 flight.

Between New Mexico and Florida, the LAS is making several public stops.  The next stop was in Hampton, Va on Oct. 23 for the 2010 EarthFest at Sandy Bottom Nature Park near the NASA Langley Research Center.

“This LAS pathfinder was used by ground crews to practice lifting and stacking operations at the launch pad to help prepare for handling the actual flight hardware used in the flawless Pad Abort 1 (PA-1) test flight,” Heather McKay told me. McKay is a propulsion engineer for Lockheed Martin in Denver.  “The LAS is the highest thrust and fastest acceleration abort system ever tested. This is the only abort system of its kind in the world and it’s state of the art.  It is equipped with three types of solid rocket motors. The innovative abort system will significantly improve astronaut safety for future human space flight.”

The PA-1 test took place on May 6, 2010 at the U.S. Army’s White Sands Missile Range near Las Cruces, N.M. During the test, the system fired the abort motor thrusting the crew module mock-up off the pad, reaching a speed of about 445 mph in three seconds. PA-1 Test Flight YouTube Video.  See more pictures here.

At this moment in late October, I am now at the Kennedy Space Center for STS-133. The LAS has arrived and I will report further next month.

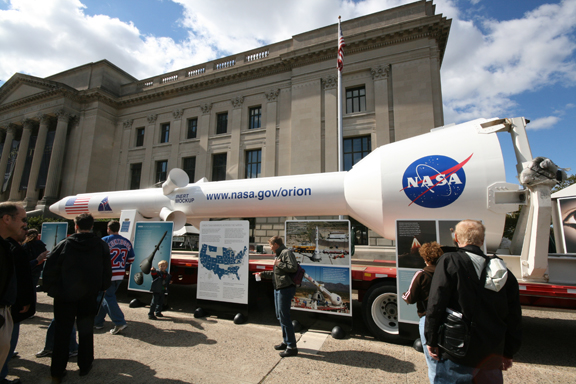

Photo Credit: Ken Kremer Orion Launch Abort System (LAS) on display at the front entrance of the Franklin Institute Science Museum in Philadelphia, PA during the weekend of Oct. 16 & 17, 2010.   The abort motor (center nozzles) generates 500,000 pounds of thrust to accelerate the Orion from 0 to 445 MPH in under 3 seconds in case of an emergency.

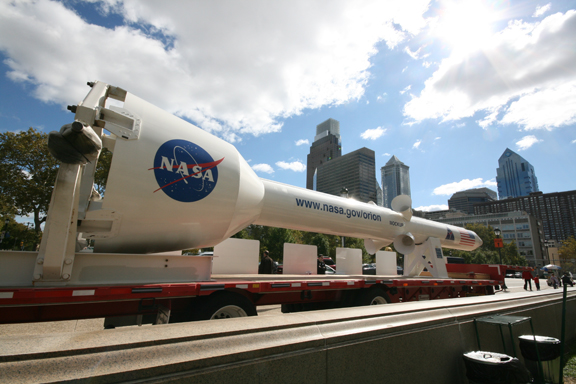

Philadelphia City Skyline and NASA’s Orion LASPhoto Credit: Ken Kremer Philadelphia City Skyline and NASA’s Orion LAS on 16 Oct. 2010.

Photo Credit: Ken Kremer Passersby enjoy the Orion LAS on display at the Franklin Institute Science Museum, Philadelphia, PA on Oct. 16/17.  The LAS performed a flawless test flight during Pad Abort 1 test on May 6, 2010.

Photo Credit: Ken Kremer Lockheed Martin propulsion engineer Heather McKay explains operation of the abort motor she helped develop and which activates in milliseconds to save astronauts lives in case of an emergency abort.  The abort motor was built by ATK in Utah.

Please contact me for more info or science outreach presentations at kremerken@yahoo.com or via my website.
